Select Value Representation

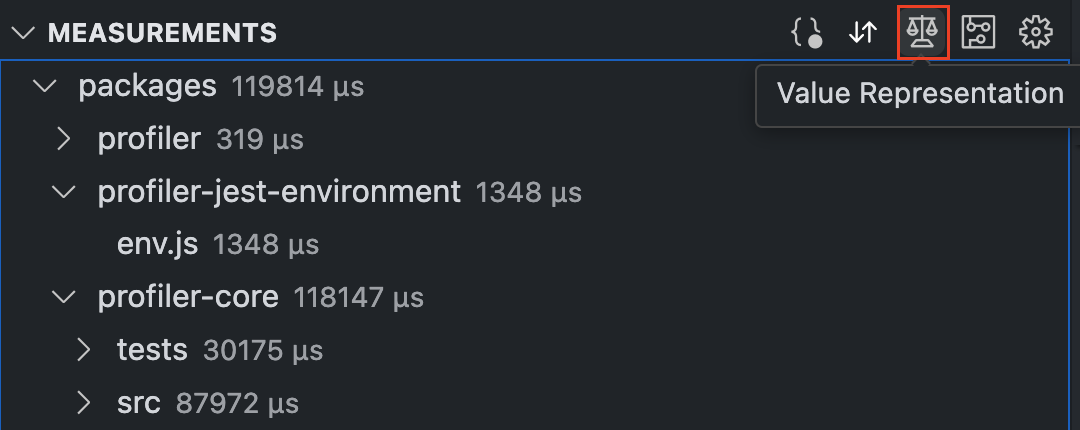

The Value Representation feature allows users to choose the display type of the measurement data in the file tree view located in the left panel.

  • Absolute Values displays the pure measurement data of the report, along with their units. For directories, it sums the measurement data of all files within them.

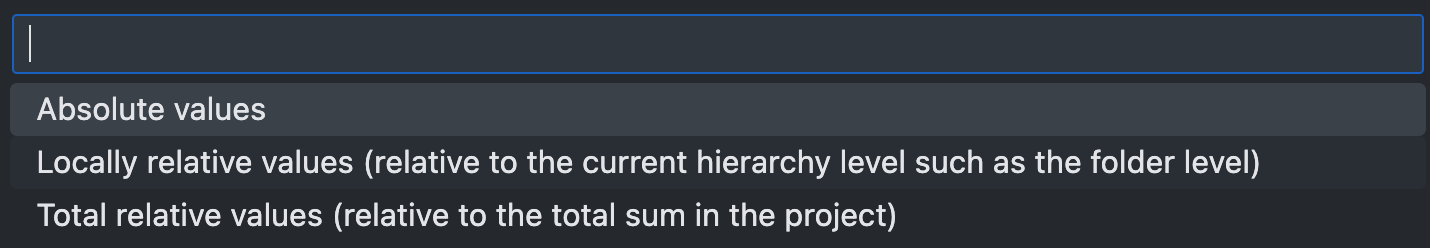

    Value Representation absolute Value Representation Selection

  • Locally relative values represent the measurement data relative to the hierarchical level (per directory or node module). Thus, the values at a given level must add up to 100%.

    Locally Relative

  • Total Relative Values represent a level in the tree relative to the entire project. Thus, the relative values of all levels together add up to 100%.

    Total Relative
